Installation elements
Installation elements

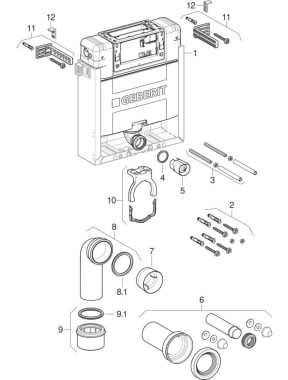

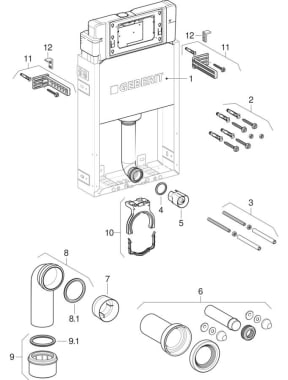

| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm (from year of construction 2023) | ||||
| 2 | 216.179.00.1 | Geberit fastening material | |||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | |||
18 Articles
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm | ||||
| 2 | 216.179.00.1 | Geberit fastening material | |||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | |||
18 Articles

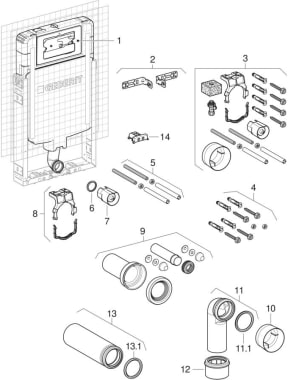

| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 8 cm | ||||
| 2 | 243.346.00.1 | Geberit set of fixing brackets 8 / 12 cm (2 pc.) | |||
| 3 | 242.419.00.1 | Installation accessories for Geberit Kombifix element for wall-hung WC, with Sigma concealed cistern 8 cm | |||
18 Articles
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Omega concealed cisterns 12 cm | ||||
| 2 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | |||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | |||
20 Articles

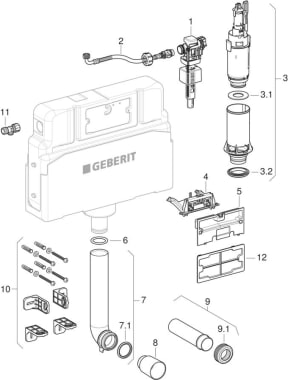

Alpha concealed cisterns 11 cm
2012 - 2023
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | Go to the spare parts page: Fill valves type 380, lateral water supply connection | ||
| 1 | Go to the spare parts page: Fill valves Type 383, lateral water supply connection unit | ||
| 2 | 225.148.00.1 | Geberit reinforced braided hose for Alpha concealed cistern 11 cm | |
19 Articles
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm, front actuation (UP720) | ||||
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm (from year of manufacture 2016) | ||||
| 2 | 242.419.00.1 | Installation accessories for Geberit Kombifix element for wall-hung WC, with Sigma concealed cistern 8 cm | |||
22 Articles
Delta concealed cisterns 8 cm (UP172)
2009 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 8/12 cm: G=1/2″ | ||
| 2 | 240.921.00.1 | Geberit type 380 reinforced hose for concealed cistern: DN=8, L=33.3cm, G=3/8″ | ||
| 2 | 241.854.00.1 | Geberit type 380 reinforced hose, dezincification-resistant, for concealed cistern: G=3/8″, M=30mm | ||
33 Articles
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | Go to the spare parts page: Sigma concealed cisterns 12 cm (UP320) | ||||
| 2 | 457.801.00.2 | Geberit filling segment for Sigma concealed cistern 12 cm | 457.801.00.1 | From 2025 range | |
| 3 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | |||
22 Articles
