Frames for WCs

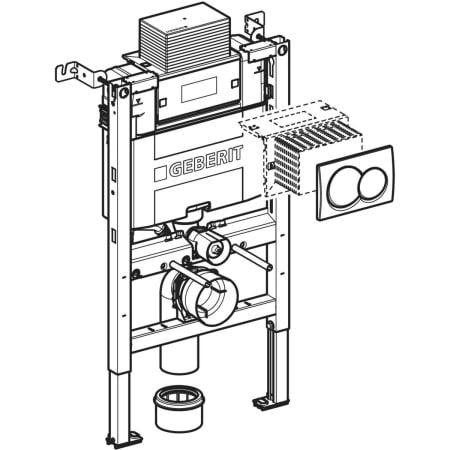

Geberit Duofix element for wall-hung WC, 82 cm, with Alpha concealed cistern 12 cm, 5.8 / 3 litres, Alpha01 flush plate, round

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
458.035.21.2
Colour / surface

chrome / glossy

B

50 cm

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2–4 l

Button shape

round

Product material

Steel

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor installation in part-height prewallsFor floor constructions 0–20 cmFor wall-hung WCs

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmFrame with ø 9 mm drilling holes for fastening in wood frame constructionFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50Galvanised leg supports protected against corrosionConnection bend can be mounted without tools
Geberit Alpha concealed cistern 12 cm fully insulated against condensationCistern fulfils standard requirements in accordance with EN 14055, Class IIFor top or front actuation, suitable for dual flushImmediate post flush possible with factory settingWater supply connection on the leftProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • 2 wall anchors

  • 115.035.21.1 - a-pl Alpha01 rnd dual pl bchr

  • Connection set for WC, ø 90 mm

  • Connection bend 90° made of PE-HD, ø 90 mm

  • 245.746.00.1 - Pull Disc f flV Type 212

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • Fastening and protection material

Accessories

Geberit sound insulation set for wall-hung WC

Accessories

Geberit sound insulation set for wall-hung WC

156.050.00.1

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

Accessories

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

111.847.00.1

Geberit Duofix set of foot fastener on rear wall

Accessories

Geberit Duofix set of foot fastener on rear wall

111.064.00.1

Replaces art. no. 111.867.00.1

Geberit Duofix set of foot extensions 20 cm length

Accessories

Geberit Duofix set of foot extensions 20 cm length

111.848.00.2

Replaces art. no. 111.848.00.1
