Frames for WCs
Phasing out

Geberit Duofix element for wall-hung WC, 82 cm, with Kappa concealed cistern 15 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Replaces art. no. 111.260.00.1

Art. no.
111.260.00.3

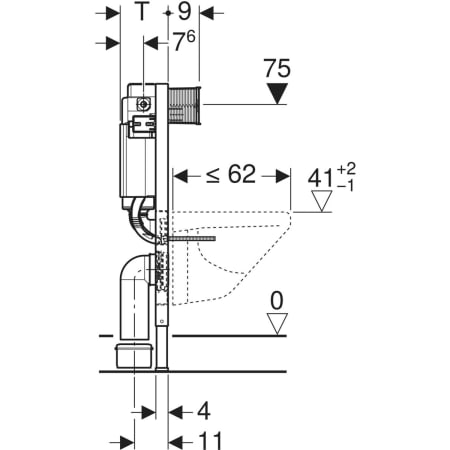

B

50 cm

H

82 cm

Additional information

  • To reduce flush volume to either 4.5/3 l dual flush or 4/2.6 l dual flush requires material number 242.310.00.1 (note: must be used with pans designed for low volume flush)

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume small, adjustment range

3–4 l

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For drywall constructionFor installation in part-height prewall installationsFor wall-hung WCs with connection dimensions in accordance with EN 33:2011For wall-hung WCs with projection up to 62 cm
For dual flushFor floor constructions 0–20 cm

Characteristics

Click on a characteristic to search more products

Statically self-supporting frame, protected against corrosion with powder coatingGalvanized feetFeet adjustable 0–20 cmConcealed cistern with front actuationConcealed cistern, fully insulated against condensationCistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory settingWater supply connection on the leftProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length without toolsWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • 2 wall anchors

  • 2 protection plugs

  • Connection set for WC, ø 90 mm

  • Connection bend 90° made of PE-HD, ø 90 / 110 mm

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • 2 threaded rods M12

  • Fastening material
