Washdown WCs for close-coupled exposed cistern

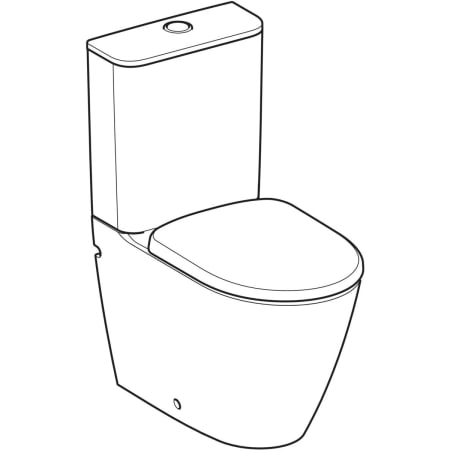

Geberit Smyle set of floor-standing WC with close-coupled exposed cistern, washdown, back-to-wall, Rimfree, with WC seat

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
503.107.00.1
Colour / surface

white

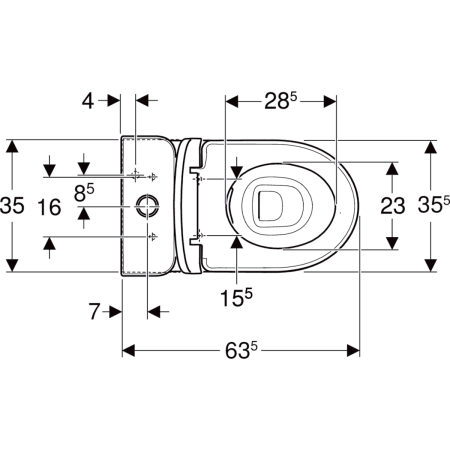

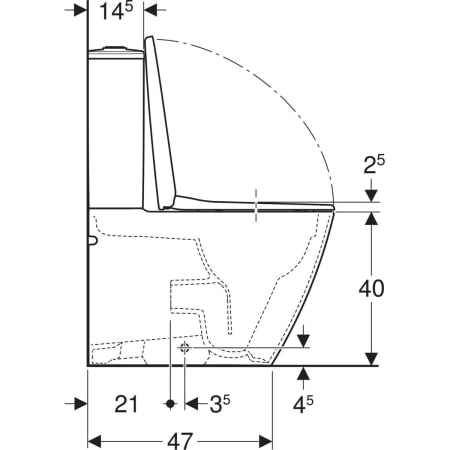

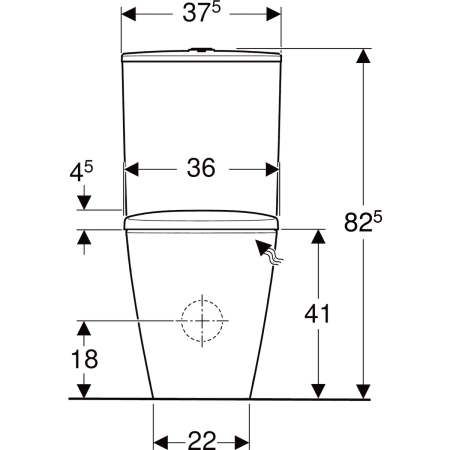

B

37.5 cm

H

82.5 cm

T

63.5 cm

Outlet

horizontal or vertical

QuickRelease function

no

Soft-closing mechanism

yes

Fastening

from above

Hinge material

Brass chrome-plated

Technical data

Product material

Vitreous china

Fastening distance

15.5 cm

Application purposes

Click on an application purpose to search more products

For water supply connections 1/2''

Characteristics

Click on a characteristic to search more products

Floor-standingBack-to-wallWashdown WCDual flushRimless WC ceramic appliance featuring Rimfree flush technologyWater supply connection on the bottom rightType 1, full flush volume 4 l, in accordance with EN 997
Type 2 in accordance with EN 997Horizontal or vertical outletShroudedHidden fasteningWC seat made of DuroplastOverlapping WC lid

Scope of delivery

  • WC ceramic appliance

  • Exposed cistern, close-coupled

  • WC seat

  • Mechanism

  • Fastening material

Accessories

Geberit connection set for floor-standing WC

Connection sets

Geberit connection set for floor-standing WC

131.082.16.1

Geberit P-bend set for floor-standing WC

Connection bends

Geberit P-bend set for floor-standing WC

131.081.11.1
