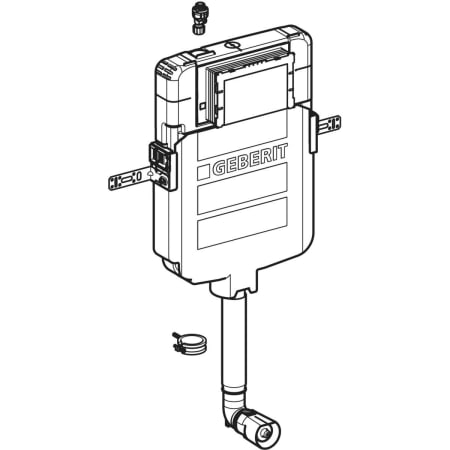

Geberit Sigma concealed cistern 8 cm, 5.8/3 litres

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 109.772.00.1

8 cm

Additional information

Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l

Product material

Plastic

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Product material	Plastic	Product material Plastic

Click on an application purpose to search more products

Click on a characteristic to search more products

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
Fastening for flush bend
