Geberit Omega concealed cistern 12 cm, 5.8/3 litres, installation height 82 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	109.041.00.1

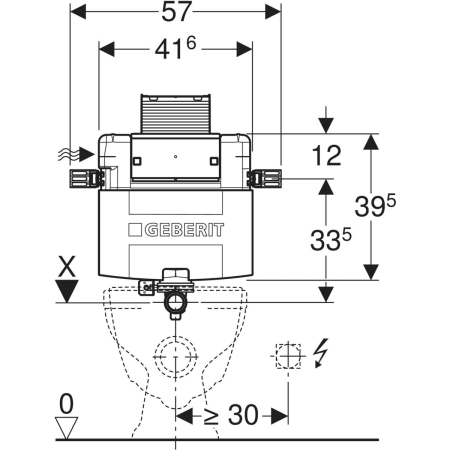

B	44 cm
H	39.5 cm

Additional information

Flush valve features settings to enable either a 6 l and 3 l flush, 4.5 l and 3 l flush or a 4 l and 2.6 l flush. Note: must be used with pans designed for low volume flush.
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Flush volume large, adjustment range	4 / 4.5 / 6 / 7.5 l	Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l

Flow rate at 300 kPa / 3 bar	0.16 l/s	Flow rate at 300 kPa / 3 bar 0.16 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar
Calculated flow rate	0.09 l/s	Calculated flow rate 0.09 l/s
Product material	Plastic	Product material Plastic

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Flush volume large, adjustment range	4 / 4.5 / 6 / 7.5 l	Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Flow rate at 300 kPa / 3 bar	0.16 l/s	Flow rate at 300 kPa / 3 bar 0.16 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar
Calculated flow rate	0.09 l/s	Calculated flow rate 0.09 l/s
Product material	Plastic	Product material Plastic

Application purposes

Click on an application purpose to search more products

For drywall construction For installation in part-height prewall installations For floor-standing WCs For dual flush

Characteristics

Click on a characteristic to search more products

Adjustable in depth Concealed cistern with top or front actuation Concealed cistern, fully insulated against condensation Cistern fulfils standard requirements in accordance with EN 14055, Class II Immediate post flush possible with factory setting

Welded flush bend Tool-free installation and maintenance work on concealed cistern Water supply connection on the left or rear left Protection cover box for service opening protects against moisture and dirt Protection box for service opening can be cut to length

Scope of delivery

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Fastening for flush bend

Protection plug
2 fixing brackets
Fastening material
245.746.00.1 - Pull Disc f flV Type 212
