Frames for washbasins
Phasing out

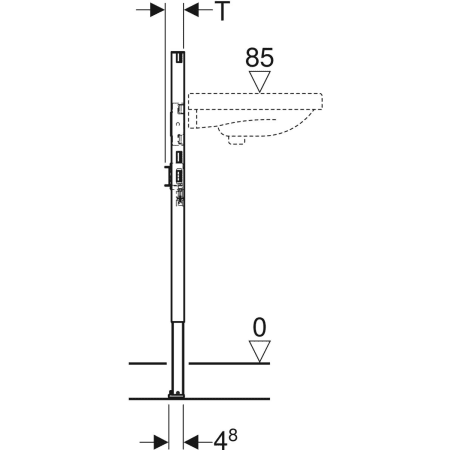

Geberit Duofix frame for washbasin, 82–98 cm, deck-mounted tap, wall anchoring

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Has been replaced by art. no. 111.494.00.2, Replaces art. no. 111.442.00.1, 111.488.00.1

Art. no.
111.494.00.1

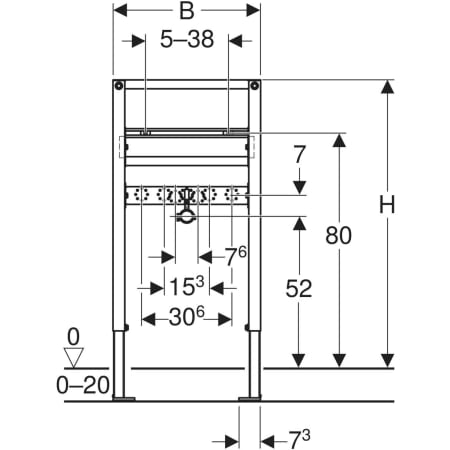

B

50 cm

H

82–98 cm

Additional information

  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame

Technical data

Product material

Steel

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For drywall constructionFor installation in part-height prewall installationsFor installation in part-height Geberit Duofix system wallsFor installation of washbasins
For deck-mounted tapsFor floor constructions 0–20 cm

Characteristics

Click on a characteristic to search more products

Statically self-supporting frame, protected against corrosion with powder coatingFrame with ø 9 mm drilling holes for fastening in wood frame constructionGalvanized feetFeet adjustable 0–20 cmNon-slip leg supportsRotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system railsFastening distance for washbasin 5–38 cmFastening for connection bend, height-adjustable and sound-absorbingCrossbar for tap adjustable in height and depthSelf-adhesive sealing washer, fleece-laminatedProtection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa

Scope of delivery

  • 2 angle stop valves 1/2"

  • 2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF

  • 2 sealing washers

  • 2 protection plugs

  • 2 threaded rods M10

  • Fastening material

Accessories

Geberit Duofix fastening for washbasins with fastening distance 38–58 cm

Accessories

Geberit Duofix fastening for washbasins with fastening distance 38–58 cm

111.868.00.1

Geberit Duofix fastening material for stud clearance 50–57.5 cm

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

111.869.00.1

Geberit Duofix set of foot extensions for floor construction 20–40 cm

Accessories

Geberit Duofix set of foot extensions for floor construction 20–40 cm

111.848.00.1

Has been replaced by art. no. 111.848.00.2

Geberit Duofix set of wall anchors for single and system installation

Accessories

Geberit Duofix set of wall anchors for single and system installation

111.844.00.1

Geberit Duofix set of wall anchors for single installation

Accessories

Geberit Duofix set of wall anchors for single installation

111.815.00.1
